Pipe Fittings

Jiffy ™ C.I. Dismantling Joints

C.I. Dismantling Joint (also available in M.S.) is an ideal joint for use in Pump House Installations. They are of immense help in creating enough space for easy and convenient removal / replacement of the flanged fittings for periodic maintenance. They also insulate the pipeline from pump vibrations. These Dismantling Joints are available in all standard sizes from 80 mm to 1000 mm dia NB. Product covered under Copyright No. A-60384/2001.


Jiffy ™ C.I. Cut-N-Repair Couplings

C.I. Jiffy ™ Cut-N-Repair Couplings or Long Sleeve Couplings are used to bridge short gaps in between two plain ends of pipes. These couplings are available in all standard sizes from 80 mm to 1000 mm dia NB. Product covered under Copyright No. A-60380/2001.

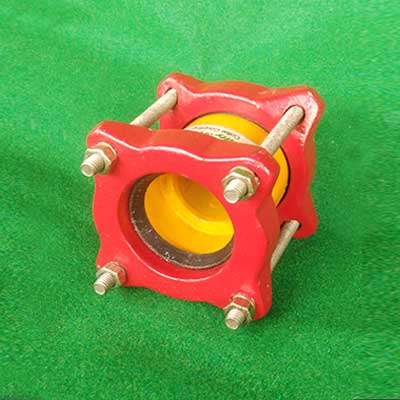

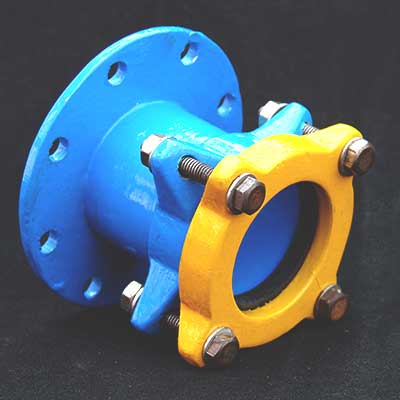

Jiffy ™ C.I. Flanged Socket Tailpieces (Flanged Adapters)

C.I. Jiffy ™ Flanged Socket Tailpieces (Jiffy ™ Flanged Adapters) are used to connect Flanged Fittings to the plain end (spigot end) of D.I. / C.I. Pipes. These adapters are ideal for connecting VALVES, WATER METERS, PUMPS etc. in your pipelines. These Tailpieces are available in all standard sizes from 80 mm to 1000 mm dia NB. Product covered under Copyright No. A-60378/2001.

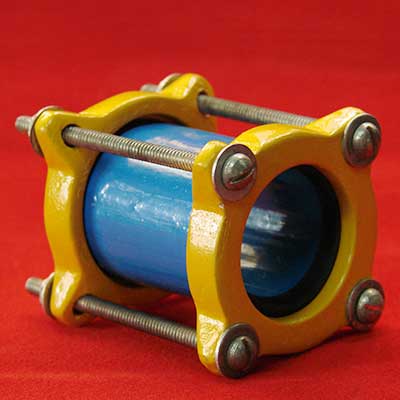

Jiffy ™ C.I. Flexible Collar Couplings

C.I. jiffy ™ Flexible Collar Couplings are used for joining two plain ends in a pipeline. They are also used for changing direction of socket in pipe lines, repairing minor misalignments, instead of bends to give angular deflections, bridging shorter gaps etc. These collar couplings are available in all standard sizes from 80 mm dia to 1600 mm dia NB. Product covered under Copyright No. A-60379/2001.


Jiffy ™ C.I. Leak Repair Clamps

Heavy traffic vibrations, soil movements or improperly fixed rubber gaskets may sometime trigger leakage in a Socket / Spigot Joint in a pipeline. Jiffy Socket Leak Repair Clamps can permanently repail such leakages in C.I. / D.I. Pipelines. The joint is supplied in splits and can be assembled directly on the leaking Joint for all permanent repairs. Only provided fasteners are to be tightened with the help of two ratchet spanners. Present available range is from 80 mm dia to 1500 mm dia NB. Product covered under Copyright No. A-60377/2001..

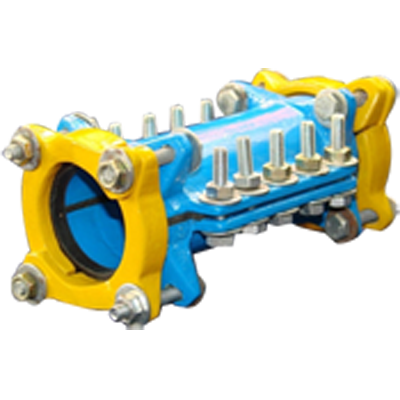

Jiffy ™ C.I. Split Collars

Jiffy ™ C.I. Split Collars are designed to in-situ repair of damaged pipe lines. The joint is supplied in splits and can be assembled directly on the longitudinal or circumferential cracks in a pipeline to encase the damaged portion without interruption in the supply. The available range is from 80 mm dia to 1000 mm dia NB. Product covered under Copyright No. A-60390/2001.

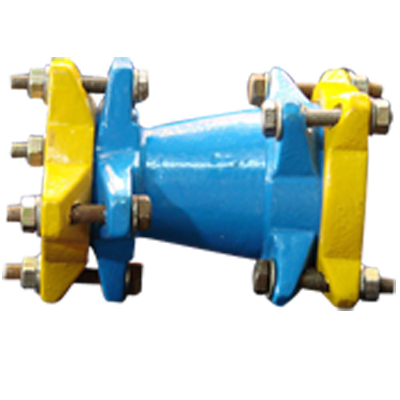

Jiffy ™ C.I. Transition Collar Couplings

Jiffy ™ C.I. Transition Collar Couplings are used to join two plain ends of pipes with same nominal bore but different outside diameters (like Indian Standards (C.I. / D.I. metric sized Pipes) with Imperial sized British Standards Pipes, or similar combinations. The available range is from 80 mm dia to 750 mm dia NB. Product covered under Copyright No. A-60383/2001.

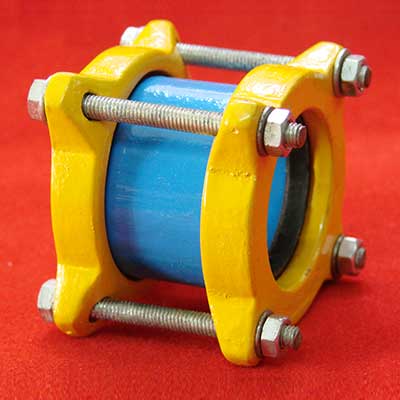

Jiffy ™ C.I. Flexible Collar Couplings

Jiffy ™ C.I. Flexible Collar Coupling is a compact, modified and economical version of out Jiffy Collar Couplings. Services and efficiency remains the same. Jiffy II Collar Couplings are available in all standard sizes from 80 mm dia to 1000 mm dia NB. Product covered under Copyright No. A-75681/2006.

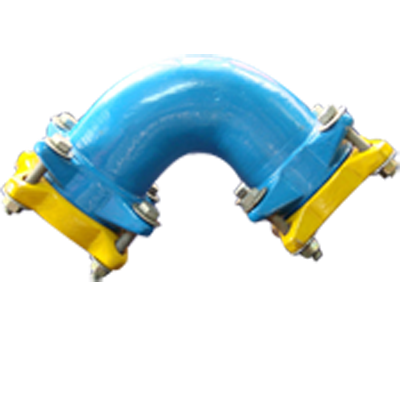

Jiffy ™ II C.I. M/J D/s Bends (90°, 45°, 22.5° & 11.25°)

Jiffy II M/J Bend is a compact, modified and very economical version of our Easylink M/J Bends. The Socket is as per our innovative design but otherwise the Bend conforms to IS: 13382:2004. These Bends are available in all standard sizes from 80 mm dia to 300 mm dia NB. Product covered under Copyright No. A- 75680/2006.


Jiffy ™ II C.I. M/J D/s Reducers

Jiffy II M/J Reducer is a compact, modified and very economical version of our Easylink M/J Reducers. The Socket is as per our innovative design but otherwise the Reducer conforms to IS: 13382:2004. These Reducers are available in all standard sizes from 80 mm dia to 300 mm dia NB. Product covered under Copyright No. A- 75684/2006.

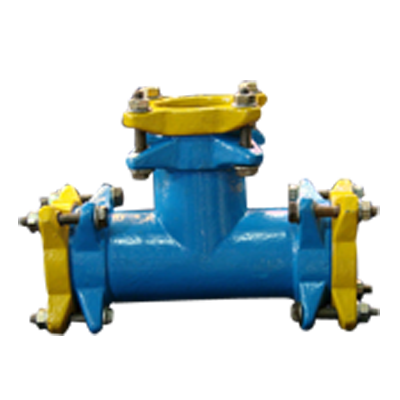

Jiffy ™ II C.I. M/J Tees (A/s & D/s with Br. Flanged)

Jiffy II M/J Tee is a compact, modified and very economical version of our Easylink M/J Tee. The Socket is as per our innovative design but otherwise the Tee conforms to IS: 13382:2004. These Tees are available in all standard sizes from 80 mm dia to 300 mm dia NB. Product covered under Copyright No. A- 75686/2006.

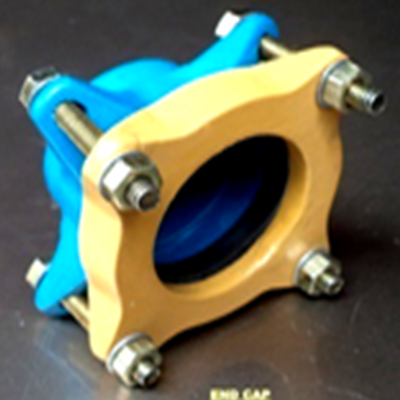

Jiffy ™ II C.I. M/J End Caps. Copyright No. A- 75685 / 2006 dt: 16.02.2006.

End Caps are used in Pipe Lines to temporarily seal an open pipe end leaving a provision for its further extension when needed. Its socket is designed for a mechanical joint to accept spigot end of the pipe and has a dead end to stop the flow. The End Cap is supplied as a complete set with the Sealing Gasket, Compression Gland & required number of Nut Bolts. End Caps will necessarily require a thrust block to prevent its blowing off. Whenever needed this End Cap can be removed & the pipe line can be extended. End Caps are available from 80 mm to 1000 mm dia.

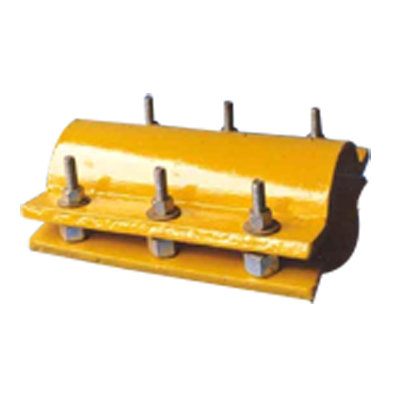

Jiffy ™ M.S. Patch Clamps

Jiffy ™ M.S. Patch Clamps are used for instantaneous repair of longitudinal cracks in D.I. / C.I. Pipes. The provided Rubber Tray covers the cracked portion and on compression seals the leakage. The clamp is 300 mm long for 80 mm to 300 mm dia NB and 500 mm long for 350 mm to 750 mm NB . Product covered under Copyright No. A-60382/2001.

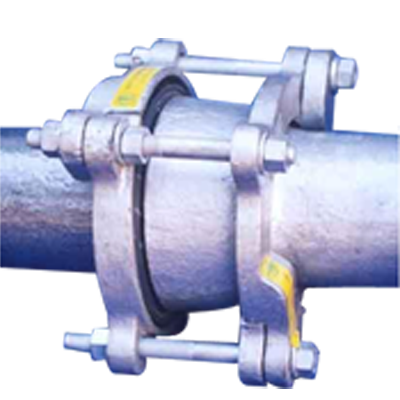

Jiffy ™ C.I. Split Collar Couplings

Jiffy ™ C.I. Split Collar Couplings is a compact, modified and economical version of out Jiffy Split Collar Couplings. Services and efficiency remain the same at a great savings. Jiffy II Split Collar Couplings are available in all standard sizes from 80 mm dia to 750 mm dia NB. Product covered under Copyright No. A-60390/2001.

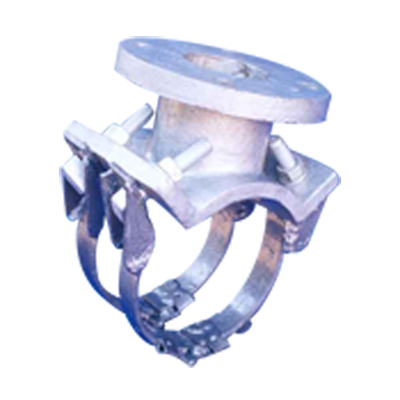

Jiffy ™ C.I. Tapping Saddles

Tapping Saddles are used for installation of air valves in an already laid pipeline. This arrangement is absolutely leak-proof and saves on the cost of one Tee and one Collar Coupling. For best performance the branch size should be ¼ or less in size of the main Pipeline. Tapping Saddles are manufactured as per the requirement of Customer to suit different types of Pipe. Product covered under Copyright No. A-60386/2001.


Jiffy ™ C.I. Dismantling Joints

This is a compact, modified and economical version of out Jiffy Dismantling Jointing. Services and efficiency remain the same at a great saving on cost. Jiffy II Dismantling Joints are available in all standard sizes from 80 mm to 1000 mm dia NB. Product covered under Copyright No. A-60384/2001.
