D.I. Fittings

D.I. Jiffy ™ Flexible Collar Couplings. Copyright No. A - 101794 / 2013 dt: 05.07.2013

Flexible Couplings are used to join two spigot ends in a pipeline. It has multiple uses – joins pipes, reverses direction of pipeline, bridges gap in a pipeline. These couplings are available in sizes from 80 mm to 1000 mm dia.


D.I. Jiffy ™ Leak Repair Clamps. Copyright No. A - 101797 / 2013 dt: 05.07.2013

Vibration due to heavy vechicular traffic, soil movement or improperly fixed rubber gasket can cause a leak at the the Socket and Spigot Joint in a pipeline. C.I. Leak Repair Clamp can now permanently seal such leaks in Socket / Spigot Joints of C.I. / D.I. / P.S.C. Pipes. Leak Repair Clamps are manufactured as per the requirment of Customer to suit different types of Pipes in the range 80 mm to 1500 mm dia.


D.I. Jiffy ™ Dismantling Joints. Copyright No. A - 101795 / 2013 dt: 05.07.2013

Dismantling Joint (Also available in M.S.) is an ideal joint for use in Pump House Installations. They are immense help in creating enough space for easy and convenient removal / relacement of the flanged fittings for periodic maintaince. They also insulate the pipeline from pump vibrations. These Dismantling Joints are available in sizes from 80 mm to 1000 mm dia.


D.I. Jiffy ™ Split Collar Couplings. Copyright No. A - 101793 / 2013 dt: 05.07.2013

C.I. Split Collars are very useful to repair of both longitudinal and circumferential cracks on a pipeline without interrupting the supply of water. The available range is from 80 mm to 1000 mm dia.


D.I. Jiffy ™ Flange Socket Tailpieces (Flanged Adapters). Copyright No. A - 101798 / 2013 dt: 05.07.2013

C.I. Jiffy Flanged Socket Tailpieces are used to connect Flanged Fittings to the plain end (spigot end) of D.I. / C.I. / A.C. / M.S. Pipes. These adapters are ideal for connecting VALVES, WATER METERS, PUMPS etc. in your pipelines. These Tailpieces are available in sizes from 80 mm to 1000 mm dia.

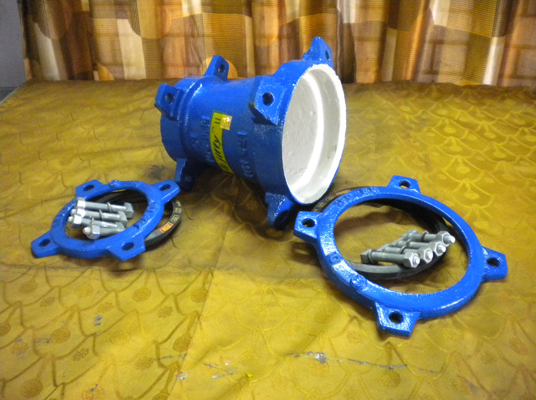

D.I. Jiffy ™ II M/J D/s Reducers

Jiffy II M/J Reducer is a compact and an economical modification on our Easylink® Reducer. The Socket is as per our innovative design but otherwise the Reducer conforms to IS: 13382:2004. These Reducers are available in all standard sizes from 80 mm dia to 300 mm dia NB. Product covered under Copyright No. A - 111514 / 2014 dt: 13.08.2014

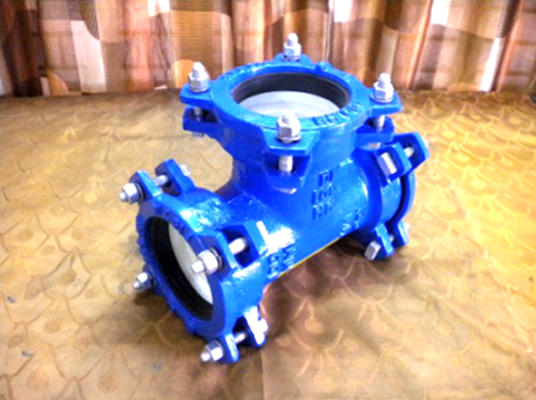

D.I. Jiffy ™ II M/J Tees (A/s & D/s with Br. Flanged)

Jiffy II M/J Tee is a compact and an economical modification on our Easylink® Tee. The Socket is as per our innovative design but otherwise the Tee conforms to IS: 13382:2004. These Tees are available in all standard sizes from 80 mm dia to 300 mm dia NB. Product covered under Copyright No. A - 111513 / 2014 dt: 13.08.2014
